Műszaki adatok

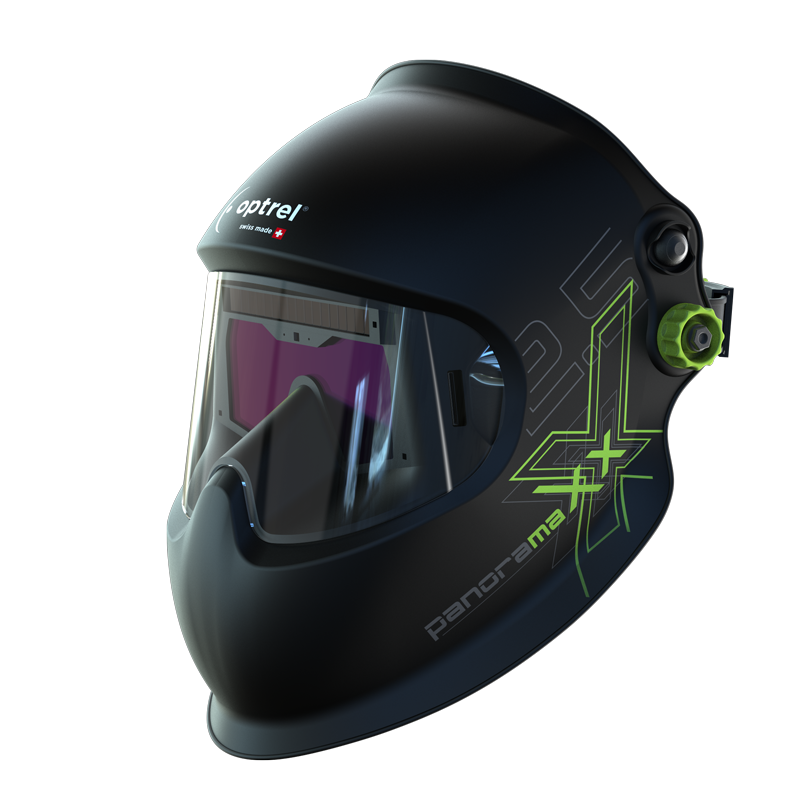

MegnevezésOPTREL panoramaxx
Mennyiségi egységdb
GyártóOptrel AG
Nettó tömeg (kg)0,655


Shade levels inactive: shade level 2,5
active, manual: shade level 7-12
Autopilot Automatic protection level regulation across a range from 5-12 with individual calibration option of ± 2
Power supply Solar cells, lithium-polymer battery, rechargeable by USB-cable
Battery life 300 to 500 charging cycles
Sensors Five Sensors
Sensitivity Infinitely adjustable, now with “super high” sensitivity
Switching time bright to dark:
0.090 ms at room temperature at 55°C
0.070 ms at 55°C
dark to bright:
0.1 s to 2.0 s (with dimming function)
Field of vision Depending on headband setting, 2.3x to 6.3x field of vision of a 100 x 50 mm standard industry ADF
EN379 classification Optical class: 1
Scattered light: 1
Homogeneity: 1
Angular dependence: 2
Shape stability Welding mask: up to 220 °C / 428 °F
Front cover lens: up to 137 °C / 279 °F
Eye protection Ultraviolet / Infrared Protection: maximum protection at any shade level
Operating temperature -10°C to + 70°C / 14°F to 158°F
Storage temperature -20°C to + 80°C / -4°F to 176°F
Weight 530 g / 18,7 oz
Scope of delivery Welding helmet, manual, storage bag, Micro USB cable, warranty card and one front cover lens
Warranty 2 years
1 year warranty extension (except batteries) for online product registration within the first 6 months.
